Maximum Rotation Range (Trajectory Boundary at Point P) of GSK RB20A3-2080
| Model |
Degree of freedom |
Drive mode |
Payload(kg) |
Repeatiablity(mm) |
Rotation Range(°) |
reach radius(mm) |
robot weight(kg) |
| J1 |
J2 |
J3 |
J4 |
J5 |
J6 |
2080 |
273 |

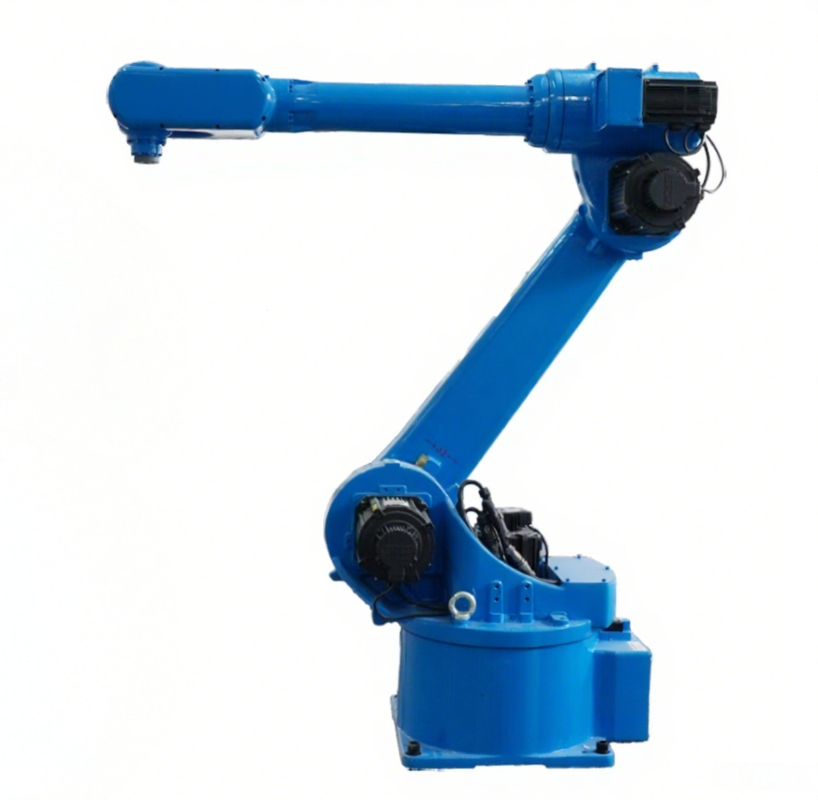

| RB20A3-2080 |
6 |
AC Servo Drive |
20 |
±0.04 |
±170 |
160～-80 |
76～-112 |
±180 |
±138 |
±360 |
| Max. Speed (°/s) |
| J1 |
J2 |
J3 |
J4 |
J5 |
J6 |
| 175 |
175 |
180 |
330 |
330 |
450 |
| Wrist Permissible Inertia (kg.m²) |
Max. Allowable Torque (N.m) |
| J4 |
J5 |
J6 |
J4 |
J5 |
J6 |
| / |
0.93 |
0.4 |
40 |
50 |
22 |
GSK-RC Controller
GSK-RC Control System
Adopting the most advanced GSK-RC control system in China, the robot can always optimize acceleration and deceleration as per actual loads, minimizing the operating cycle time.
(SIS) System Monitoring
The robot utilizes its built-in Service Information System (SIS) to monitor real-time motion and payload status, enabling service demand optimization for extended continuous operation.
Embedded Robot Controller
Featuring an ARM+DSP+FPGA hardware architecture, the controller can control 4 to 8 axes, with an operation speed of up to 500MIPS. It is designed with ports for high-speed motion fieldbus, Ethernet, RS232/485, CAN, and DeviceNet, achieving continuous-path teaching and online teaching. It also has remote monitoring and diagnosis functions.
Robot Fieldbus (GSK-Link)
It delivers high-speed real-time performance, resolving the inherent trade-off between bandwidth and real-time requirements. It simultaneously achieves both high communication rate and precise real-time control, enabling seamless data interaction across distributed modules.
Dynamic Adaptive Identification and Control Technology
Considering the disturbance of external forces such as gravitational force, Coriolis force and centrifugal force during robot motion, the adaptive identification and control technology is applied to improve the dynamic performance of the robot.
Main Parameters of GSK-RC Controller
| Items |
GSK-RC |
| Control system |
Teaching method |
Teach-and-repeat |
| Drive Mode |
AC servo motor |
| Number of control axes |
6 axes (expandable to 8 axes) |
| Position control mode |
PTP/CP |
| Speed control |
TCP constant speed control |
| Coordinate system |
Joint 'coordinate angle' coordinates/user coordinates/tool coordinates |
| Memory |
Memory medium |
Flash memory |
| Memory capacity |
256m |
| Memory content |
Points, lines, arcs, conditional commands, etc. |
| Action |
Interpolation function |
Linear interpolation, circular interpolation |
| Manual operation speed |
4 adjustable segments |
| Edit |
Edit |
Add, Input, Delete, Edit |
| External control input |
Condition setting |
Set conditions in the program |
| General physical I/O |
input/output points and support for analog output (0-10V) |
Industry Application
Package Detail
FAQ About Robot
1.Question: [SAFETY] I want to ensure the industrial robot I purchase complies with industry standards and regulations. What certifications does it have?
Answer: This industrial robot has passed strict industry certifications and standards, including ISO quality management system certification and CE certification and ATEX for painting robots, ensuring its quality and safety.
2.Question:[Technical support] I need an industrial robot with reliable technical support and training services. Do you offer support in this area?
Answer: Yes, we provide comprehensive technical support and training services, including operation training, maintenance training, and on-site support to ensure you can fully utilize the performance and capabilities of the industrial robot.
3.Question:[Material download ]Where can I obtain relevant information about robots, including parameter manuals, mathematical models, and so on
Answer: https://www.efort.com.cn/en/index.php/service/downservice.html
4.Question:【Warranty】how about your warranty
Answer :Yes, our products come with a certain period of warranty. The specific warranty period and coverage may vary depending on the product model and region. Please provide your location and the product model you are interested in to obtain more accurate information. In general, the warranty period is 12 months.
5.Question:【Payment】how about the payment if we place orders to you .
Answer :We accept multiple payment methods, including but not limited to TT, L/C, etc. You can choose the payment method that is convenient for you.
6.Question:[Customization] Do you provide any possible customized service .
Answer: Yes, we provide customization services within a certain range, such as color customization, boot UI customization, LOLO customization, etc., according to the specific requirements of customers. Please provide your customization requirements, and we will do our best to meet your needs.
7.Question: [maintenance] What are the maintenance costs for the industrial robot? I want to understand the long-term operating costs.
Answer: The maintenance costs for this industrial robot are very low. We provide maintenance services including regular inspections, preventive maintenance, and quick-response technical support to minimize your operating costs.
8.Question: [Easy to use ] I expect efficient programming capabilities in the industrial robot for quick deployment and adjustments on the production line. Does it offer efficient programming?
Answer: This industrial robot comes with user-friendly programming interfaces and advanced programming capabilities, allowing for quick and easy deployment and adjustments on the production line.
9.Question: [Reliability] How reliable is the industrial robot? I need a stable and dependable machine to ensure production continuity.
Answer: This industrial robot undergoes rigorous quality control and testing, ensuring excellent reliability and stability. It is built with advanced technology and high-quality materials to ensure continuous production.
