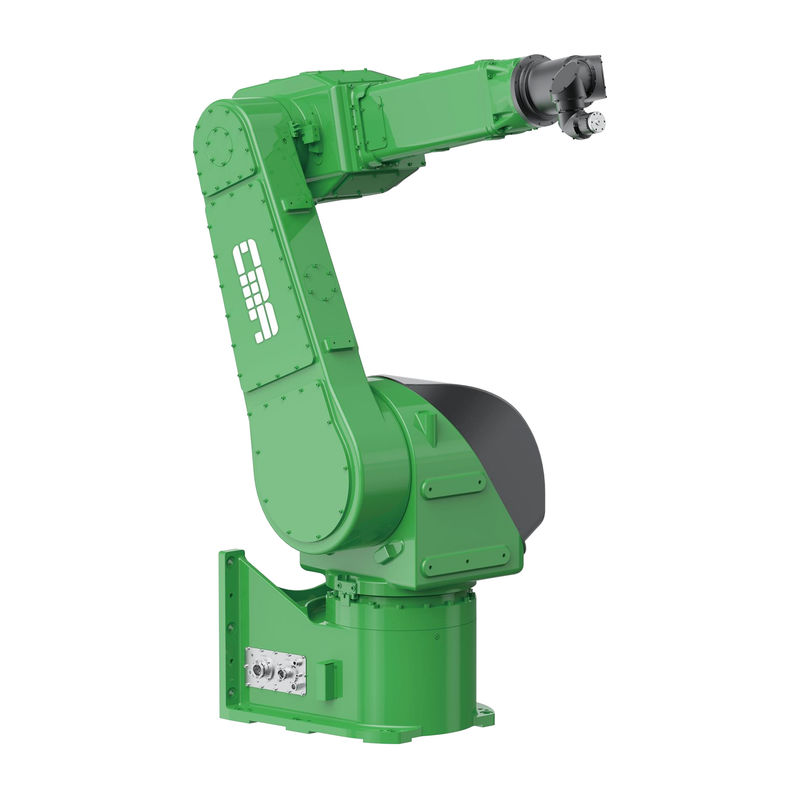

Painting robot for furniture, metal, hardware, steel construction, GR6100-2200 payload 10kg reach 2204mm
Robots highlights:
Provide ground, ceiling suspension, wall hanging, Angle and other installation methods;
The three-stage design of the upper arm facilitates the disassembly, installation
and integration of the segments;
Configure the biased wrist, no singularity on the front, convenient for integration;
Supports expansion linkage additional axis;
Optional offline programming software, standard spray painting process package, built-in
peripheral equipment I/O points, simple programming, easy to integrate;
Through the ATEX explosion-proof certification of China, EU and ITTC, it can be
used in 1 zone gas and 21 zone dust hazardous working environment.
Applicable scene:
Developed for general industry painting application, suitable for wood, furniture, ceramic, metal, hardware, container, energy storage box, engineering machinary steel construction painting ;
Applicable industry:
It is suitable for wood, furniture, ceramic, metal, hardware, container, energy storage box, engineering machinary steel construction painting.
| Wrist can carry max. |
10kg |
| Reach the radius |
2204mm |
|
| Repeated positioning accuracy |
± 0.2mm |
|
Range of motion of
each axis
&
Maximum single axis
speed |
|
Range of motion
of each axis |
Maximum single axis speed |
|
|
| J1 |
±160° |
100°/sec |
|
| J2 |
±135° |
100°/sec |
| J3 |
-65°/+245° |
120°/sec |
|
| J4 |
±540° |
360°/sec |
|
| J5 |
±540° |
420°/sec |
|
| J6 |
±540° |
530°/sec |
The wrist allows
the load torque |
J4 |
30 N·m |
|
| J5 |
25 N·m |
|
| J6 |
12 N·m |
The wrist allows it
Load rotational
inertia |
J4 |
0.8 kg·m² |
|
| J5 |
0.59 kg·m² |
|
| J6 |
0.1 kg·m² |
| Structure |
6 Axis Series Structure |
| Installation |
Floor,Upside-down,Wall,Angel |
| IP Grade |
Robot |
IP65 |
| Cabinet |
IP54 |
| Explosion Proof |
China-Gas |
Ex ib mb px IIC T4 Gb |
|
| ATEX -Gas |
II 2G Ex pxb IIC T4 Gb |
| ATEX -Dust |
II 2D Ex pxb IIIC T135℃ Db |
| Enviroment Requirements |
Voltage |
3~AC380V(±10%) |
| Power Capacity |
5.0 kVA |
| Temperature |
0~ 45℃ |
| Humidity |
RH≤80%(No Condensation) |
| Arm Payload |
Outer Arm |
15 kg |
| Inner Arm |
15 kg |
| Weight |
Robot |
640 kg |
| Cabinet |
160 kg |
| Project |
Standard layout |
Optional configuration |
| Driver Unit |
6 axes |
6+2 axis |
| Electrical cabinet-body-Cable |
Static: 8 m |
Longest: 30m |
| / |
Maximum drag chain length: 30m |
| Teaching device cable |
8m |
Longest: 30m |
| Digital quantity DI/DO |
16 / 16 |
/ |
| Modelled quantities AI/AO |
/ |
Can add analog hardware module, up to 4 channels |
| Field bus |
Ethercat |
ProfiNet |
CC link |
| Process capacity |
1 GB |
/ |
| External port |
Ethercat
Network port |
/ |
| software package |
Painting package |
|
|
| The conveyor belt tracks |
|
Optional |
| Color |
RAL6018 |
Customerize |
FAQ About Robot
1.Question: [SAFETY] I want to ensure the industrial robot I purchase complies with industry standards and regulations. What certifications does it have?
Answer: This industrial robot has passed strict industry certifications and standards, including ISO quality management system certification and CE certification and ATEX for painting robots, ensuring its quality and safety.
2.Question:[Technical support] I need an industrial robot with reliable technical support and training services. Do you offer support in this area?
Answer: Yes, we provide comprehensive technical support and training services, including operation training, maintenance training, and on-site support to ensure you can fully utilize the performance and capabilities of the industrial robot.
3.Question:[Material download ]Where can I obtain relevant information about robots, including parameter manuals, mathematical models, and so on
Answer: https://www.efort.com.cn/en/index.php/service/downservice.html
4.Question:【Warranty】how about your warranty
Answer :Yes, our products come with a certain period of warranty. The specific warranty period and coverage may vary depending on the product model and region. Please provide your location and the product model you are interested in to obtain more accurate information. In general, the warranty period is 12 months.
5.Question:【Payment】how about the payment if we place orders to you .
Answer :We accept multiple payment methods, including but not limited to TT, L/C, etc. You can choose the payment method that is convenient for you.
6.Question:[Customization] Do you provide any possible customized service .
Answer: Yes, we provide customization services within a certain range, such as color customization, boot UI customization, LOLO customization, etc., according to the specific requirements of customers. Please provide your customization requirements, and we will do our best to meet your needs.
7.Question: [maintenance] What are the maintenance costs for the industrial robot? I want to understand the long-term operating costs.
Answer: The maintenance costs for this industrial robot are very low. We provide maintenance services including regular inspections, preventive maintenance, and quick-response technical support to minimize your operating costs.
8.Question: [Easy to use ] I expect efficient programming capabilities in the industrial robot for quick deployment and adjustments on the production line. Does it offer efficient programming?
Answer: This industrial robot comes with user-friendly programming interfaces and advanced programming capabilities, allowing for quick and easy deployment and adjustments on the production line.
9.Question: [Reliability] How reliable is the industrial robot? I need a stable and dependable machine to ensure production continuity.
Answer: This industrial robot undergoes rigorous quality control and testing, ensuring excellent reliability and stability. It is built with advanced technology and high-quality materials to ensure continuous production.
