Atomizer Cleaner Focused On Fluid Conveying Metering Proportioning Mixing And Atomization Technologies
  • Atomizer Cleaner Focused On Fluid Conveying Metering Proportioning Mixing And Atomization Technologies
Atomizer Cleaner Focused On Fluid Conveying Metering Proportioning Mixing And Atomization Technologies

Atomizer Cleaner Focused On Fluid Conveying Metering Proportioning Mixing And Atomization Technologies

Place of Origin CHINA
Brand Name Techfly
Product Details
Maximum paint pressure:
300 Psi（21 Bar，2.1 MPa）
Maximum Air Pressure:
100 Psi（7 Bar，0.7 MPa）
Solvent Inlet Size:
(φ6*8）
Air Inlet Dimensions:
(φ6*8）
Valve Controls Airway Dimensions:
(φ4*2.5）
Working Temperature:
5 - 50° C（41 - 122° F）
Size:
φ250mm*H620mm
Weight:
About 10Kg
Maximum Solvent Consumption:
150cc
Highlight:

Atomizer Cleaner Fluid Conveying

,

Metering Atomizer Cleaner

,

Proportioning Atomizer Cleaner

Payment & Shipping Terms
Minimum Order Quantity
1
Price
RFQ
Packaging Details
wooden boxes
Delivery Time
3-5weeks
Payment Terms
,T/T,L/C
Supply Ability
30000
Product Description

Atomizer Cleaner Focused On Fluid Conveying, Metering, Proportioning Mixing, And Atomization Technologies


Overview of fluid equipment
The atomizer cleaning machine is a product that automatically completes the cleaning of spray guns/spin cups in an extremely short time according to pre-programmed cleaning procedures, replacing manual cleaning operations. Meanwhile, it significantly reduces the amount of cleaning solvent used.  When connected to a waste solvent recovery system, the waste solvent is stored centrally and can be reused after filtration, distillation and other treatments, which can greatly reduce the cost of cleaning solvents and reduce VOC emissions.
It can improve the quality of product spraying, reduce the rejection rate, increase the first-pass yield and reduce downtime. It also reduces the wear and tear of the atomizer and is equipped with purge air to blow dry the spray cap after cleaning. With a 304 stainless steel structure, it is easy to clean and features an explosion-proof design.

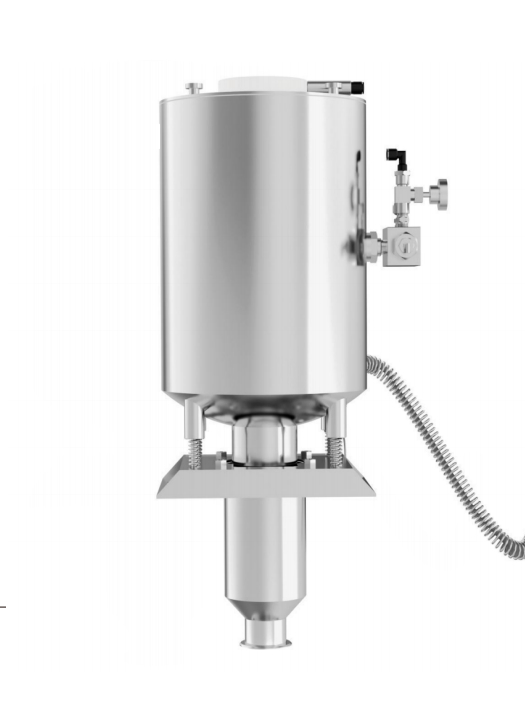

Atomizer Cleaner Focused On Fluid Conveying Metering Proportioning Mixing And Atomization Technologies 0
360°flushing nozzle
Rotary impeller design enables 360-degree alternating flushing of the spray head with air and solvent. The sealed adapter prevents solvent spillage.

Quick disassembly
Quick-screw design. It enables quick cleaning of the barrel interior. The entire stainless steel barrel body undergoes polishing treatment, with an open-type discharge.

Safe and explosion-proof
The entire machine adopts a  pneumatic design. The impeller uses mechanical ceramic bearings, and stainless steel pneumatic valves are employed for switching fluids and air. The equipment can achieve safe and explosion-proof  operation once grounded.

Small size easy to deploy
With a barrel body diameter of  φ250, it occupies small floor space. The standardized discharge interface facilitates waste liquid recovery.


 Cleaning process


C h a n g e   c o l o r , c l e a n   a n d   f i l l
step 1 2 3 4 5 6 7 8 9 10
Time (second) 1.5 Actual 1 0.5 0.5 0.5 0.5 0.5 3.5 1.5
conditions
The robot is ready for cleaning   √
Change color,clean and fill     √
Dry ambient air √ √ √ √ √ √ √ √ √ √ √
Head solvent       √
Air from the nozzle         √   √   √
The robot is in the dry position                   √
The robot is at the starting position                     √


7s 10s 150CC
washing time Start position to start position cycle time Solvent consumption

Note: It is preferable to perform the solvent/air/solvent/air cycle rather than a single solvent/air step (even if longer) This ensures better mechanical

cleaning efficiency, particularly in severe contamination scenariowhere emulsions form. For mild contamination, a single solvent/air step can be used. The backflow valve prevents air from entering the solvent during simultaneous valve operation, eliminating the need for pause intervals between solvent and air valve closures. Additionally, introducing air into the solvent during the cleaning process enhances operational efficiency.


 Introduction of cleaning machine structure


Atomizer Cleaner Focused On Fluid Conveying Metering Proportioning Mixing And Atomization Technologies 1

1--adapter                            2--flooding nozzle                                3--Rotary  impeller

4--buffer spring                5--installation base                           6--bleeder pipe

7--Drying air inlet              8--Air solvent  switching valve          9--ground lead

Atomizer Cleaner Focused On Fluid Conveying Metering Proportioning Mixing And Atomization Technologies 21

Order information


GW Gun Quantity Atomizer model
1:Spray gun 1: 1 set 1: AGMD 6: ABB RB1000i-SAD


9: Xp Pro Auto
* *Can be customized according to different models
2: Spin cup 2: 2 sets 2: TDA80 7: ABB RB1000i-SSD


3: Cobra3C 8: RMA670 spin cup


4: AG362 9: Xp Pro Auto
*


5: PerformAA *Can be customized
according to different models


Technical parameter


Maximum paint pressure 300 psi(21 bar,2.1 MPa)
(low pressure system)
Maximum air pressure 100 psi(7 bar,0.7 MPa)
Solvent inlet size (φ6*8)
Air inlet dimensions (φ6*8)
Valve controls airway dimensions (φ4*2.5)
working temperature 5 - 50° C(41 - 122° F)
size φ250mm*H620mm
Applicable fluids Single component, solvent and water based coatings, polyurethane, epoxy resin, etc
Infiltration components 316 stainless steel,304 stainless steel,FFKM,PTFE
Maximum solvent consumption 150cc
weight about 10Kg
